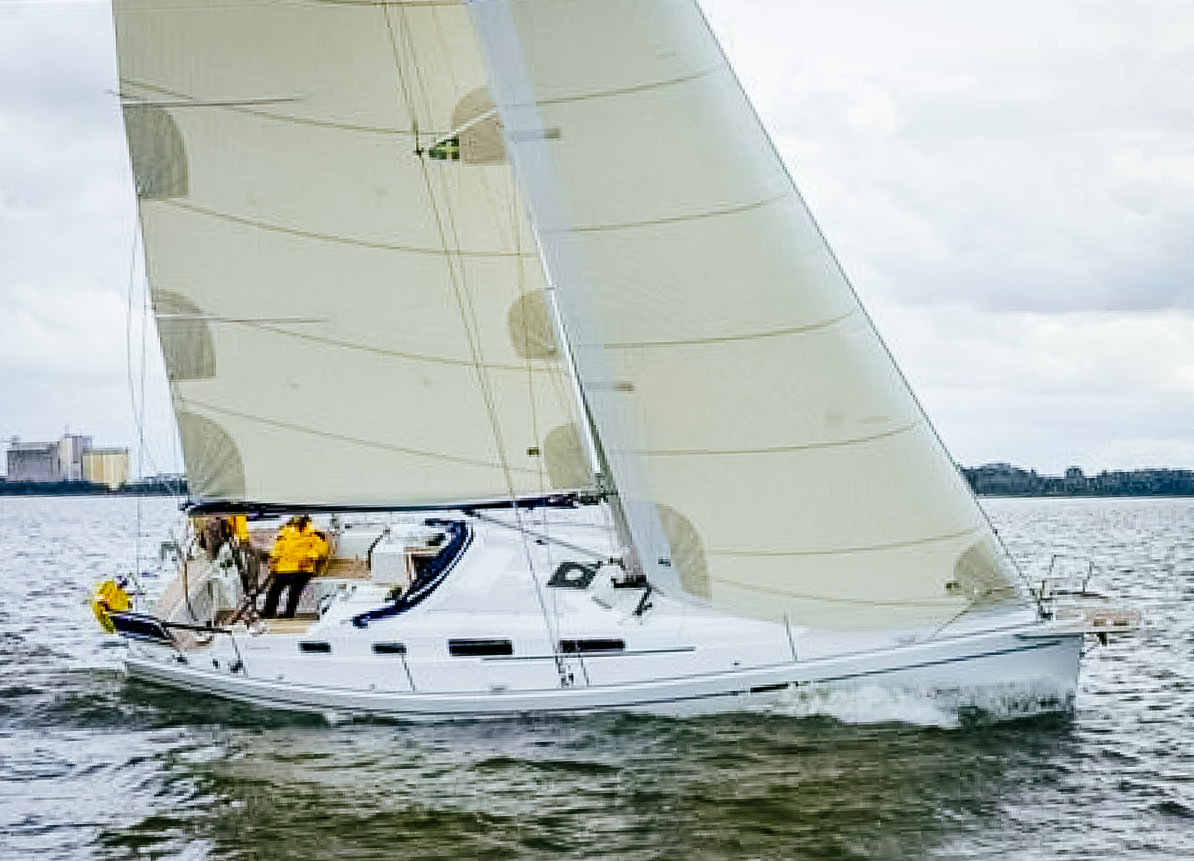

Flex - Cruising Genua
Sails made with cross cut panels are the most economical sails to make because there is very little cloth waste. Sails made with Flex laminates are designed to be the least expensive laminate sail since they can be made with cross-cut panels without having to be reinforced with load-bearing tapes.
To understand the unique structure of Flex, one needs some background on sail construction. A cross-cut sail has all panels parallel to each other and perpendicular to the straight-line leech. This construction utilizes sailcloth that has the stronger fill yarns going across the panel instead of along the length of the roll of cloth, see inset in Diagram 1.

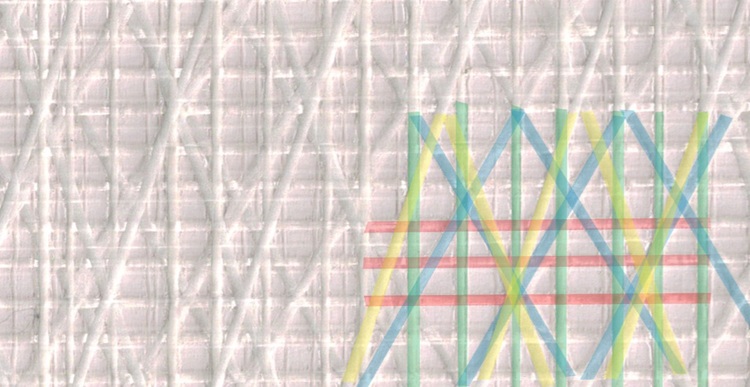

FLEX is a fill-oriented cloth made of a loose weave of warp and fill yarns that is bulked up with two sets of X-Ply yarns around the fill yarns. See Photo 1, below.
The purpose of two sets of X-Ply yarns, more in-line with the fill yarns (highlighted in blue and yellow), is to pick up the loads going up and down the leech. In a “string sail,” e.g. Tape-Drive, X-Drive and Titanium, the continuous yarns or tapes smoothly carry the loads between the head and the clew along the leech. In a tri-radial sail, narrow panels are angled so that long, strong warp yarns can be aligned with the leech loads. In FLEX sails the two sets of X-Yarns are there to pick up the loads not perfectly picked up in the cross-cut layout.
For cruising sailors, FLEX laminates can be made with polyester yarns of varying density and with or without taffeta.
For cruising sailors, FLEX laminates are made with polyester yarns of varying density and with or without taffeta.
