The UK Texas J/70 sails were developed by combining the available information on this new class, alongside of our experience with light displacement sailboats and other J/classes, using all UK Technology sail design program (One of the most advanced sail design programs), allowing us a complete 3D view and multiple panel configuration.
UK Texas designed an all-purpose mainsail utilizing cross-cut Dacron with radial corners and a radial Jib made of square Dacron, which was made for all conditions. We have also designed a heavy air radial Mainsail. The kite was designed by UK Chicago, and is constructed with AIRX Nylon. It was designed to sail deep while keeping on plane yet does not lose performance in light breeze. Since the J/70 has a stiff Carbon fiber mast, we chose a cross-cut panel configuration with radial corners for the AP Mainsail in order to have enough variation of shape for different wind conditions and a Tri-radial Jib with 245SQ Dacron in order to hold the shape for all conditions. Sails are made in USA at our loft in Houston TX.

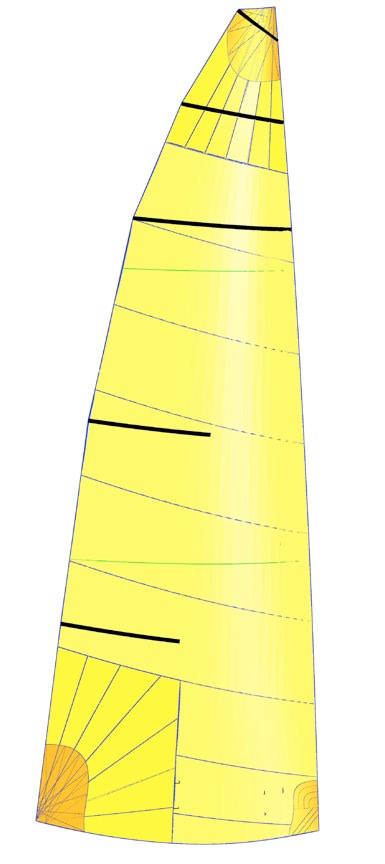

AP Mainsail Cross-cut
Material: Dimension Polyant 240HTP Dacron with square 245HTP radial head and clew. RBS tapered battens with tensioners, two windows, spectra leech line, Spectra Clew and Spectra Tack straps. Designed by: Pedro Gianotti of UK Texas. Click for Tuning Guide

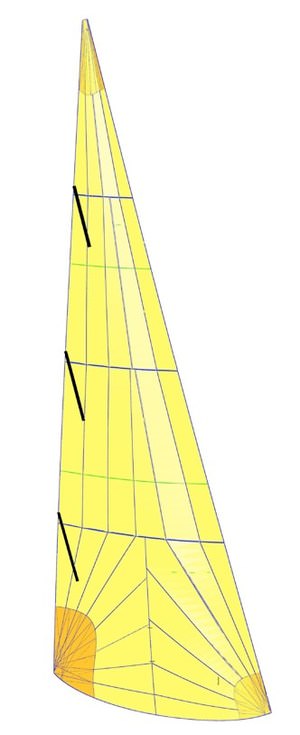

AP Jib Radial
Material: Dimension Polyant Pro Radial 284 Dacron, which is a wrap-oriented 6.5 oz woven polyester. This was material proved the most durable of the four designs we have made over the years.
Luff with zipper (webbing strap + clip version available), RBS Battens, two windows, spectra leech line.
Designed by: Pedro Gianotti of UK Texas. Click for Tuning Guide
Material: Nylon Bainbridge AIRX650. Two panels layouts available, Designed by: Pat Considine UK Chicago. Click for Tuning Guide
PHRF Code 0
For PHRF racing on close reaches, we developed a Code 0 that goes on 2’sprit. Material: CZ05 Laminate.Designed by: Pedro Gianotti of UK Texas. Click for Tuning Guide
UK Sailmakers offers you:
- Accurate design
- Easy trimming
- First quality cloth and hardware
Click here for the Tuning Guide or Pricing Information
J/70 Quick Tuning Guide
Headstay Lenght: 27' 8 1/4"
Prebend: about 2"
Inhaul: 1" to 1 1/5" at base
Downloads: J/70 Tuning Guide
Contact us for more information
UK Sailmakers Texas
2031 Anders Ln, Suite J
Kemah, TX 77564
